Face Mount Electric Motors (C-Face & D-Flange Configurations)
Face mount electric motors feature a machined front flange that allows direct coupling to driven equipment — eliminating the need for a base or belt drive.
They’re used wherever precise shaft alignment, compact installation, and vibration control are required — such as pumps, gear reducers, conveyors, and OEM machinery.
Available in both C-Face (threaded bolt) and D-Flange (through-bolt) configurations, face mount motors are offered in ODP, TEFC, and Explosion-Proof (TEXP) enclosures and meet NEMA Premium® efficiency standards.

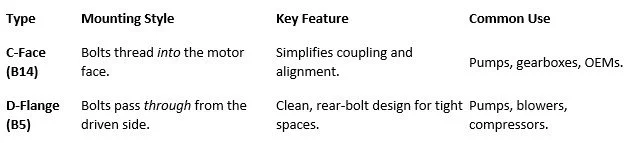

Types of Face Mount Motors
Both designs provide rigid shaft alignment and are fully compatible with VFD controls and IEC adapter rings.
Typical Specifications (Face Mount Motors)
Specification Typical Range / Option
Mounting Type C-Face (B14) / D-Flange (B5)
Horsepower Range 1 – 200 HP
Speed (RPM) 900 / 1200 / 1800 / 3600
Enclosures ODP, TEFC, TEXP
Frame Sizes 56C–449TC / 56D–449TD
Voltage Options 208 / 230 / 460 / 575 V (3-Phase)
Materials Cast Iron, Stainless Steel, Fabricated Steel
Common Applications
Close-coupled centrifugal and booster pumps
Gearboxes and mechanical drives
Compressors, fans, and blowers
Mixers and OEM assemblies
Compact automation and process skids
Face mount motors are ideal wherever alignment precision and reduced footprint are mission-critical.
Enclosure and Frame Options
Frame materials include Cast Iron, Stainless Steel, and Fabricated Steel depending on application and corrosion requirements.
Request a Quote or Spec Sheet
Looking for a face mount electric motor?
Our specialists can help identify whether a C-Face or D-Flange configuration fits your equipment best.
Request a Quote or Request Spec Sheet to receive detailed specifications, pricing, and availability from Brook Crompton, US Electric, and Worldwide Electric.
